The utils folder
The building blocks of Blockchain Development Kit's (BDK) structure.
Last updated
The building blocks of Blockchain Development Kit's (BDK) structure.
Last updated

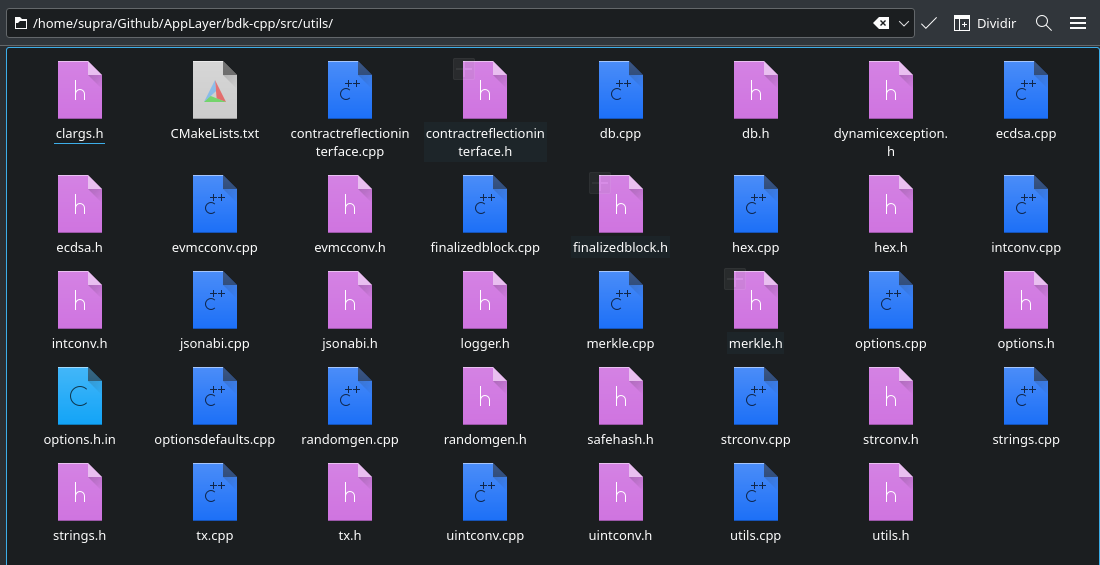

This subchapter contains a brief overview of each one of the components inside the src/utils folder.
The clargs.h file contains a few helper functions, structs and enums to parse command-line arguments passed to the project's executables. For an executable to be aware of the argument parser, it must be registered inside the BDKTool enum and the executable itself must call the parseCommandLineArgs() function, passing the arguments in a C-style manner (argc and argv) and the respective enum value. Check the executables' source files for more info.
The contractreflectioninterface.h file contains the ContractReflectionInterface namespace - utility functions for enabling reflections in C++ through the extensive use of templates, which helps with writing native contracts in a quicker and easier way (e.g. registering functions and variables using less lines of code, abstracting away and taking care of most details).
The db.h file contains the DB class - an abstraction of a Speedb database used internally for various kinds of storage - as well as helper classes, structures and namespaces to manipulate the database.
The dynamicexception.h file contains the DynamicException class - a custom exception class inherited from std::exception used across the whole project. It is meant to be used when there's no applicable exception from the STD library for a given error that should be caught - usually the STD library is too generic, as the project grows some exceptions may become specific to the point we need to handle them in a customized manner.
The ecdsa.h file contains the Secp256k1 namespace - helper functions that abstract the functionalities of Bitcoin's secp256k1 elliptic curve cryptography library, used for handling, deriving and recovering private/public keys and addresses, as well as signing and verifying signed messages.
The file also contains a few aliases for easier key handling, which are based on our own string abstractions (see FixedBytes below):
PrivKey (same as Hash, or FixedBytes<32>) - alias for a given private key
PubKey (same as FixedBytes<33>) - alias for a compressed public key
UPubKey (same as FixedBytes<65>) - alias for an uncompressed public key
The finalizedblock.h file contains the FinalizedBlock class - an abstraction of the structure of a block sent through the network and stored in the blockchain. A finalized block is inherently final - it cannot be modified anymore after construction.
The class only contains the bare structure and data of a block - it doesn't do any kind of operation, validation or verification on it. Having only finalized blocks across the entire project ensures block state integrity across all nodes.
The hex.h file contains the Hex class - an abstraction of a strictly hex-formatted string (meaning it only accepts the characters within the range of 0x[1-9][a-f][A-F]), which can also be set to strict or not (whether the string REQUIRES the 0x prefix or not to be considered valid). Also contains aliases for working with raw-byte strings, such as Byte, Bytes and BytesArr.
The jsonabi.h file contains the JsonAbi namespace - utility functions for managing and converting contract ABI data to JSON format, used by the contract ABI generator tool in src/main-contract-abi.cpp.
The logger.h file contains the Logger class - a singleton responsible for logging any kind of info - and helper components such as the Log namespace (a namespace with predefined string names for referencing other modules), the LogInfo class (encapsulated log data), and the LogType enum (for flagging the severity of log messages). The Logger::logToFile() and Logger::logToDebug() functions print the given details to the respective log.txt and debug.txt files inside the node's directory.
The file also contains a plethora of macros to leverage the logging functions and their flags in a more "hands-on" approach, usable anywhere in the project (with a few exceptions depending on the context of where the macro is used in code). Check the Doxygen comments in the file for more info on how to use them.
The merkle.h class contains the Merkle class - a custom implementation of a Merkle Tree, adapted from the following sites:
A "Merkle Tree" is a data structure in binary tree format (e.g. "heap sort"), where data is stored in the "leaves", and the "branches" are paths to reach their data. This structure is commonly used in the crypto space as a tool for verification: it hashes the previous layers in pairs to make new layers, bottom-up, until it reaches a single result which would be the "root" of the tree - this makes the root a unique fingerprint for the entire tree, so you only need to check the root hash to verify both the tree and its leaves were not tampered with.
The options.h file contains the Options class - a singleton with data about the node, frequently accessed by the BDK. This file is pre-generated from its respective options.h.in file during the CMake build process, as some of the info have to be gathered on-the-spot from the CMake config files.
The randomgen.h contains the RandomGen class - the implementation of the RNG (Random Number Generator) used in rdPoS for almost everything related to consensus, responsible for ensuring a satisfactory level of deterministic randomness for the algorithm, and shuffling Validator lists.
This deterministic randomness guarantees that every node has a chance to answer for a given request (block, randomness, bridging, etc.), while making sure that selected nodes from the network are truly random and not malicious nodes from a bad actor.
For RandomGen to be useful, it needs to be seeded with a truly random number. Therefore, we have to pay attention to the current state of RandomGen, making sure that all nodes are always in the same internal state so they can properly sync with each other.
The safehash.h contains the SafeHash struct - a custom hashing implementation for use with unordered_map and/or derivatives, replacing the one used by default, like this for example: std::unordered_map<Hash, uint64_t, SafeHash>.
Previously, we used std::unordered_map in conjunction with a custom fix from this CodeForces article so we could continue using the C++ STD's implementation of unordered_map due to its blazing fast query times (basically the STD implementation uses uint64_t hashes, which is vulnerable to a potentially dangerous edge case where collisions could happen by having an enormous number of accounts and distributing them in a way that they have the same hash across all nodes - this fix is not perfect, since it still uses uint64_t, but it's better than nothing since nodes keep different hashes).
Currently, we replaced the usage of std::unordered_map in the whole project with Boost's implementation (boost::unordered_flat_map) in conjunction with the Wyhash library, the highest and fastest quality hash function available for size_t (64-bit) hashes, to achieve a simpler, faster and more solid functionality.
The file also contains the FNVHash struct - a custom implementation of the Fowler-Noll-Vo hash struct, used within broadcast messages. This skips compiler optimizations and forces the whole string to be hashed, diminishing the chance of collisions (because, again, we're using 64-bit hashes).
The strings.h file contains the FixedBytes template class - an abstraction of a normal std::array with a fixed size. For example, a FixedBytes<10> would have exactly 10 characters in it - no more, no less. If initialized as an empty string, it will remain as a 10-character string nonetheless, with all characters set to "empty" (or \x00 to be more exact).
Even though FixedBytes can be used on its own (it's meant to store only bytes, after all), it also serves as a base for specific classes, also declared within the same file and created with the intent of dealing with the many different ways that data strings are managed and transferred through the project in a better, less confusing and less convoluted way:
Hash inherits FixedBytes<32> and abstracts a given 32-byte hash
Functor abstracts the first 4 bytes of a Solidity function's keccak hash, but does not inherit FixedBytes directly - instead it opts for a more practical approach and just treats those bytes as a uint32_t
Signature inherits FixedBytes<65> and abstracts a given full ECDSA signature (r, s and v)
Address inherits FixedBytes<20> and abstracts a given 20-byte address
StorageKey inherits FixedBytes<52> and abstracts an EVM storage key (20 bytes address + 32 bytes slot key)
All of these custom types are standard compliant (trivially copyable and trivially destructible), which means they can be handled like a STD container such as std::vector for example.
The tx.h file contains the TxBlock and TxValidator classes - abstractions for a block transaction and a Validator transaction, respectively. The implementation logic and details for those transactions are derived from the "Account" model, used by Ethereum and implemented by the Aleth library, which is different from the "UTXO" model used by Bitcoin.
It also contains a helper struct called TxAdditionalData, which contains metadata about a contract that was deployed in the chain, such as the transaction hash, how much gas was used in the transaction, if the call succeeded or not, and the contract's address.
The respective files uintconv.h, intconv.h, strconv.h and evmcconv.h contain several namespaces related to aliases, conversion and manipulation of specific types of data (previously in the Utils namespace, now divided into their own namespaces):
UintConv: contains several uintX_t primitive type aliases used across the project, as well as their respective conversion functions (e.g. uintXToBytes()/bytesToUintX())
IntConv: contains several intX_t primitive type aliases used across the project, as well as their respective conversion functions (e.g. intXToBytes()/bytesToIntX())
StrConv: contains a few functions for converting and manipulating raw byte and UTF-8 strings (e.g. padLeft()/padRight() and their respective raw byte counterparts, toLower()/toUpper(), bytesToString(), stringToBytes(), etc.)
EVMCConv: contains a few functions for converting and manipulating EVMC-specific data types (e.g. functors and their specific implementation of uint256)
The utils.h file contains the Utils namespace - a place for generalized miscellaneous utility functions, namespaces, enums and typedefs used across the BDK.
This list is only an example and does not reflect the entire contents of the file. We suggest you read the Doxygen docs for more info about the class:
Helper functions that deal with printing (safePrint(), safePrintTest(), printXYZ(), etc.)
Aliases for working with raw-byte strings (Byte,Bytes, BytesArr) and helper functions for converting and/or manipulating them (e.g. appendBytes())
For appendBytes() specifically, it is recommended to use it if you need a buffer, otherwise you can use bytes::join() as a slightly faster replacement (e.g. if you have all the data required at once, use bytes::join(), if you have the data scattered across different places, use a Bytes object as a buffer and use it with appendBytes())
The ProtocolContractAddress map for storing addresses for deployed Protocol Contracts (e.g. rdPoS and ContractManager)
Enums for network types (Networks), contract function types (FunctionTypes) and contract types (ContractType)
The Account struct, used to maintain account balance and nonce statuses, as well as contract-specific data (if the account represents a contract)
A wrapper for a pointer that ensures the pointer is never null (NonNullUniquePtr), as well as a wrapper for a pointer that forcefully nullifies it on destruction (PointerNullifier)
The EventParam struct, used for abstracting a contract event parameter
Several templated helper functions that deal with tuples, as well as helper functions that deal with Functors
The sha3() function, used extensively as the primary hash function for the entire project
The randBytes() function, used extensively as a random bytes string generator
